HTD3M rubber single-sided tooth synchronous belt design parameters: the tooth shape is circular arc tooth, also known as circular arc tooth synchronous belt, circular arc tooth synchronous belt transmission accuracy is high, low noise. Standard design reference value: Pitch :3mm; Tooth height: 1.17mm; Tape thickness: 2.4mm
HTD3M rubber single-sided synchronous belt design features:
1. The special curved tooth shape of HTD3M rubber single-sided synchronous belt improves the distribution of force and allows for higher overall load.
2, HTD3M rubber single-sided tooth synchronous belt accurate spacing belt teeth to ensure the correct positioning slot in the pulley.
3, HTD3M rubber single-sided tooth synchronous belt surface with tough nylon protective surface, reduce the damage of the belt.
4. HTD3M rubber single-sided synchronous belt is durable and pollution-free to the environment.
HTD3M rubber single-sided synchronous belt Advantages:
1, HTD3M rubber single-sided tooth synchronous belt with large load.
2, HTD3M rubber single-sided tooth synchronous belt without delay. Synchronous belt gear tooth mesh, reduce speed changes. The speed of the continuous push
3, HTD3M rubber single-sided tooth synchronous belt without lubrication, no need to adjust due to stretching and wear.
4. HTD3M rubber single-sided synchronous belt has high mechanical efficiency. The belt reduces heat accumulation and does not require a transfer load because of friction.
5, HTD3M rubber single-sided tooth synchronous belt long-term trouble-free service life.
HTD3M rubber single-sided synchronous belt Identification:

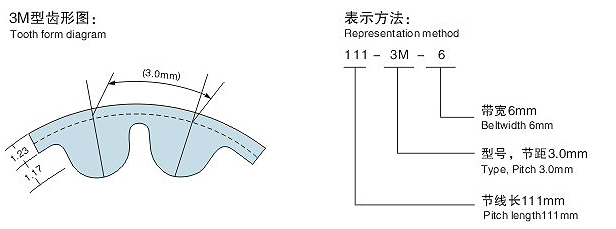

Three parts: Indicates the length, spacing, and width of the belt brought back by the part number. As shown in the following picture. This HTD3M rubber single-toothed synchronous belt model has a length of 111mm and a bandwidth of 6mm.
| Specification | Pitch length | Number of teeth | Specification | Pitch length | Number of teeth |
| 111-Htd3M | 111.00 | 37 | 354-Htd3M | 354.00 | 118 |
| 120-Htd3M | 120.00 | 40 | 357-Htd3M | 357.00 | 119 |
| 129-Htd3M | 129.00 | 43 | 363-Htd3M | 363.00 | 121 |
| 135-Htd3M | 135.00 | 45 | 369-Htd3M | 369.00 | 122 |
| 141-Htd3M | 141.00 | 47 | 375-Htd3M | 375.00 | 123 |
| 150-Htd3M | 150.00 | 50 | 384-Htd3M | 384.00 | 128 |
| 153-Htd3M | 153.00 | 51 | 390-Htd3M | 390.00 | 130 |
| 156-Htd3M | 156.00 | 52 | 399-Htd3M | 399.00 | 133 |
| 159-Htd3M | 159.00 | 53 | 405-Htd3M | 405.00 | 135 |
| 165-Htd3M | 165.00 | 55 | 411-Htd3M | 411.00 | 137 |
| 171-Htd3M | 171.00 | 57 | 420-Htd3M | 420.00 | 140 |
| 174-Htd3M | 174.00 | 58 | 426-Htd3M | 426.00 | 142 |
| 177-Htd3M | 177.00 | 59 | 432-Htd3M | 432.00 | 144 |
| 180-Htd3M | 180.00 | 60 | 447-Htd3M | 447.00 | 149 |
| 189-Htd3M | 189.00 | 63 | 459-Htd3M | 459.00 | 153 |
| 192-Htd3M | 192.00 | 64 | 474-Htd3M | 474.00 | 158 |
| 195-Htd3M | 195.00 | 65 | 480-Htd3M | 480.00 | 160 |
| 201-Htd3M | 201.00 | 67 | 486-Htd3M | 486.00 | 162 |
| 204-Htd3M | 204.00 | 68 | 495-Htd3M | 495.00 | 165 |
| 207-Htd3M | 207.00 | 69 | 501-Htd3M | 501.00 | 167 |
| 210-Htd3M | 210.00 | 70 | 513-Htd3M | 513.00 | 171 |
| 213-Htd3M | 213.00 | 71 | 519-Htd3M | 519.00 | 173 |
| 219-Htd3M | 219.00 | 73 | 522-Htd3M | 522.00 | 174 |
| 222-Htd3M | 222.00 | 74 | 531-Htd3M | 531.00 | 177 |
| 225-Htd3M | 225.00 | 75 | 537-Htd3M | 537.00 | 179 |
| 228-Htd3M | 228.00 | 76 | 546-Htd3M | 546.00 | 182 |
| 237-Htd3M | 237.00 | 79 | 552-Htd3M | 552.00 | 184 |
| 240-Htd3M | 240.00 | 80 | 564-Htd3M | 564.00 | 188 |
| 246-Htd3M | 246.00 | 82 | 576-Htd3M | 576.00 | 192 |
| 252-Htd3M | 252.00 | 84 | 582-Htd3M | 582.00 | 194 |
| 255-Htd3M | 255.00 | 85 | 597-Htd3M | 597.00 | 199 |
| 261-Htd3M | 261.00 | 87 | 606-Htd3M | 606.00 | 202 |
| 264-Htd3M | 264.00 | 88 | 609-Htd3M | 609.00 | 203 |
| 267-Htd3M | 267.00 | 89 | 612-Htd3M | 612.00 | 204 |
| 270-Htd3M | 270.00 | 90 | 630-Htd3M | 630.00 | 210 |
| 276-Htd3M | 276.00 | 92 | 633-Htd3M | 633.00 | 211 |
| 279-Htd3M | 279.00 | 93 | 648-Htd3M | 648.00 | 216 |
| 282-Htd3M | 282.00 | 94 | 654-Htd3M | 654.00 | 218 |
| 285-Htd3M | 285.00 | 95 | 669-Htd3M | 669.00 | 223 |
| 288-Htd3M | 288.00 | 96 | 675-Htd3M | 675.00 | 225 |
| 291-Htd3M | 291.00 | 97 | 699-Htd3M | 699.00 | 233 |
| 294-Htd3M | 294.00 | 98 | 711-Htd3M | 711.00 | 237 |
| 297-Htd3M | 297.00 | 99 | 750-Htd3M | 750.00 | 250 |
| 300-Htd3M | 300.00 | 100 | 753-Htd3M | 753.00 | 251 |
| 306-Htd3M | 306.00 | 102 | 801-Htd3M | 801.00 | 267 |
| 309-Htd3M | 309.00 | 103 | 813-Htd3M | 813.00 | 271 |
| 312-Htd3M | 312.00 | 104 | 885-Htd3M | 885.00 | 295 |
| 315-Htd3M | 315.00 | 105 | 900-Htd3M | 900.00 | 300 |
| 318-Htd3M | 318.00 | 106 | 939-Htd3M | 939.00 | 313 |
| 324-Htd3M | 324.00 | 108 | 1125-Htd3M | 1125.00 | 375 |
| 327-Htd3M | 327.00 | 109 | 1245-Htd3M | 1245.00 | 415 |
| 330-Htd3M | 330.00 | 110 | 1569-Htd3M | 1569.00 | 523 |
| 336-Htd3M | 336.00 | 112 | 1800-Htd3M | 1800.00 | 600 |
| 339-Htd3M | 339.00 | 113 | 2388-Htd3M | 2388.00 | 796 |
| 345-Htd3M | 345.00 | 115 | 2640-Htd3M | 2640.00 | 880 |
| 348-Htd3M | 348.00 | 116 | 3000-Htd3M | 3000.00 | 1000 |
| 351-Htd3M | 351.00 | 117 |
