Modified circular arc tooth RPP2M synchronous pulley

Modified circular arc tooth RPP2M synchronous pulley

  • 【Production materials】: 45# steel, aluminum alloy, cast iron, brass, etc
  • 【Processing equipment】: CNC lathes, gear hobbing machines, etc
  • 【Supply cycle】: 3-10 days
  • 【Application area】: Communication food machinery, medical machinery, steel machinery, petrochemical, instrumentation, various precision machine tools, etc
The RPP2M synchronous pulley is not only used for the RPP2M synchronous belt of the domestic equipment, but also can replace the imported RPP2M synchronous pulley. If you customize the RPP2M synchronous pulley, please provide the drawing of the pulley (it is not necessary to draw the tooth shape size of the pulley in the drawing), we can also draw the drawing of the pulley according to the specifications and models provided by you, the inner hole of the pulley, the keyway, the width and other dimensions; We can also provide you with mapping pulley and other services.

Introduction to Modified circular arc tooth RPP2M synchronous pulley

Standard sync band width K W L
04=4MM 5.5 9.5 18
06=6MM 7.5 11.5 20
12=12MM 13.5 17.5 26

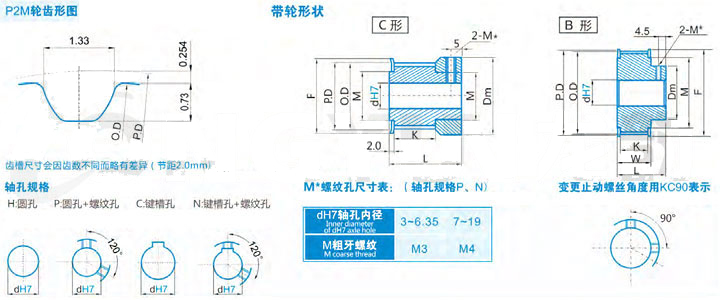

Specification Shape 节径P.D Outer diameter O.D Flange outside diameter F Inner diameter of flange M Wheel hub diameter Dm Inner hole dH7
H P C|N
P2M*14 C 8.91 8.40 12 6 12 3|4
P2M*15 9.55 9.04 12 6 13 3|4|5
P2M*16 10.19 9.68 14 8 13 3|4|5
P2M*18 11.46 10.95 14 8 15 3~6
P2M*20 12.73 12.22 16 8.5 17 4~6.35
P2M*22 14.01 13.50 18 11 17 4~6.35
P2M*24 15.28 14.77 20 12 17 4~6.35
P2M*25 15.92 15.41 20 12 20 4~6.35
P2M*28 B 17.83 17.32 23 13 12 5~6.35 5~6.35
P2M*30 19.10 18.59 23 13 12 5~8 5~8
P2M*32 20.37 19.86 25 16 12 5~8 5~8
P2M*36 22.92 22.41 28 18 14 5~9 5~9
P2M*40 25.46 24.95 31 20 16 5~10 5~10 8
P2M*42 26.74 26.23 35 24 18 5~12 5~12 8|10
P2M*44 28.01 27.50 33 22 18 5~12 5~12 8|10
P2M*48 30.56 30.05 35 24 18 5~12 5~12 8|10
P2M*50 31.83 31.32 35 24 22 5~15 5~15 8~13
P2M*60 38.20 37.69 44 32 28 5~19 5~19 8~18
Note: The above is the company’s standard reference model parameters, the specific model according to your requirements customized processing.
