RPP14M rubber single-sided synchronous belt Features:
1, RPP14M rubber single-sided tooth synchronization belt belongs to the Ω tooth shape synchronization belt, is 14M and S14M circular arc tooth shape synchronization belt improved.
2, RPP14M tooth synchronous belt wheel transmission characteristics: in addition to the advantages of general synchronous belt transmission, due to the characteristics of its circular tooth shape, the top of the tooth groove, in the transmission noise reduction has a unique advantage.
3, RPP14M rubber single-sided tooth synchronous belt material is rubber material.
4, RPP14M rubber single-sided tooth synchronous belt without delay. Synchronous belt gear tooth mesh, reduce speed changes. The speed of the continuous push
5, RPP14M rubber single-sided tooth synchronous belt long-term trouble-free service life.

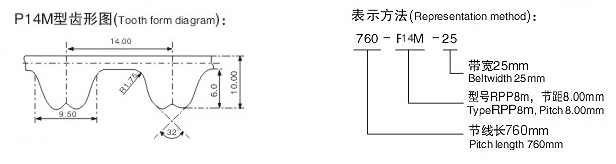

RPP14M rubber single-sided synchronous belt tooth profile:
| Specification | Pitch length | Number of teeth |
| 966-RPP14M | 966.00 | 69 |
| 1190-RPP14M | 1190.00 | 85 |
| 1400-RPP14M | 1400.00 | 100 |
| 1610-RPP14M | 1610.00 | 115 |
| 1764-RPP14M | 1764.00 | 126 |
| 1778-RPP14M | 1778.00 | 127 |
| 1890-RPP14M | 1890.00 | 135 |
| 2100-RPP14M | 2100.00 | 150 |
| 2310-RPP14M | 2310.00 | 165 |
| 2450-RPP14M | 2450.00 | 175 |
| 2590-RPP14M | 2590.00 | 185 |
| 2800-RPP14M | 2800.00 | 200 |
| 3150-RPP14M | 3150.00 | 225 |
| 3360-RPP14M | 3360.00 | 240 |
| 3500-RPP14M | 3500.00 | 250 |
| 3850-RPP14M | 3850.00 | 275 |
| 4326-RPP14M | 4326.00 | 309 |
| 4578-RPP14M | 4578.00 | 327 |
| 4956-RPP14M | 4956.00 | 354 |
