MXL rubber single sided toothed synchronous belt

Introduction to MXL rubber single sided toothed synchronous belt

MXL Rubber single-sided tooth synchronous belt Design parameters:
The shape of the teeth is British trapezoid teeth, also known as square teeth, which is the lightest transmission design.
Standard design reference value: Pitch :2.032mm; Tooth height: 0.51mm; Band thickness: 1.14; Angle: 40 degrees;
MXL rubber single-sided tooth synchronous belt design points:?
1, trapezoidal tooth form. ?
2, elastic support and teeth combined with durability and light weight.
3, nylon face to protect and strengthen the tooth surface.
4, to provide stability and flexibility of FRP wire length.
MXL rubber single sided teeth synchronous belt Advantages:
1, power output up to 0.8kW, speed up to 20000 speed.
2, the MXL belt allows the use of small pulley diameter (from 6 mm diameter).
3. Maximum number of reticulated teeth.
4, the height of the stepper motor use.
5, accurate positioning.
6. Very stable.
MXL rubber single-sided synchronous belt Identification:

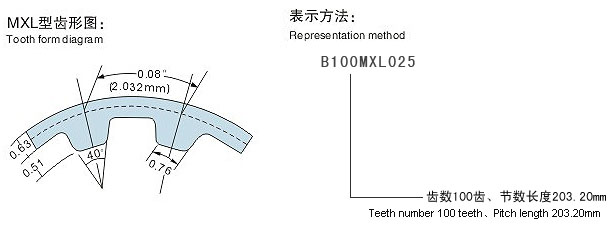

Three parts: Indicates the length, spacing, and width of the belt brought back by the part number. As shown in the following picture.

Specifications of MXL rubber single sided toothed synchronous belt
