S5M rubber single-sided synchronous belt with 5mm curved pitch, S5M rubber single-sided synchronous belt is mainly used in small and medium drives. The S5M rubber single side tooth synchronous belt tooth design has better transmission curve than the traditional 5M rubber single side tooth synchronous belt. In this way, the force is evenly distributed to each belt tooth, which improves the load capacity, reduces the wear of the belt teeth, eliminates noise, and makes the S5M rubber single-sided synchronous belt longer service life.
S5M rubber single-sided synchronous belt Advantages:
1, S5M rubber single-sided tooth synchronous belt with large load.
2, S5M rubber single-sided tooth synchronous belt without delay. Synchronous belt gear tooth mesh, reduce speed changes. The speed of the continuous push
3, S5M rubber single-sided tooth synchronous belt without lubrication, no need to adjust due to stretching and wear.
4, S5M rubber single-sided tooth synchronous belt mechanical efficiency is high. The belt reduces heat accumulation and does not require a transfer load because of friction.
5, S5M rubber single-sided tooth synchronous belt long-term trouble-free service life.
S5M rubber single-sided synchronous belt design features:
S5M rubber single-sided tooth synchro-band urethane is very wear-resistant, fatigue-resistant, and very flexible at the same time. Product quality is visible through numerous details. Tight and accurate tolerances enable perfect tooth meshing.
S5M rubber single tooth synchronous belt Identification:

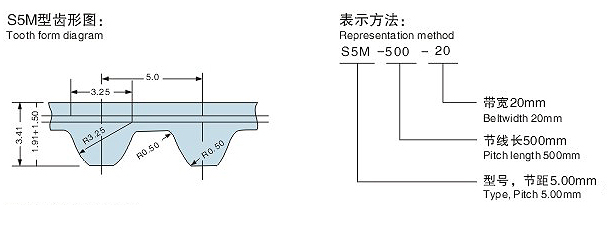

Three parts: Indicates the length, spacing, and width of the belt brought back by the part number. As shown in the following picture. This S5M rubber single-toothed synchronous belt model has a pitch length of 500mm and a bandwidth of 20mm.
| Specification | Pitch length | Number of teeth | Specification | Pitch length | Number of teeth |
| STS5M-150 | 150.00 | 30 | STS5M-625 | 625.00 | 125 |
| STS5M-250 | 250.00 | 50 | STS5M-650 | 650.00 | 130 |
| STS5M-255 | 255.00 | 51 | STS5M-670 | 670.00 | 134 |
| STS5M-295 | 295.00 | 59 | STS5M-675 | 675.00 | 135 |
| STS5M-300 | 300.00 | 60 | STS5M-695 | 695.00 | 139 |
| STS5M-325 | 325.00 | 65 | STS5M-700 | 700.00 | 140 |
| STS5M-335 | 335.00 | 67 | STS5M-710 | 710.00 | 142 |
| STS5M-340 | 340.00 | 68 | STS5M-750 | 750.00 | 150 |
| STS5M-355 | 355.00 | 71 | STS5M-800 | 800.00 | 160 |
| STS5M-375 | 375.00 | 75 | STS5M-810 | 810.00 | 162 |
| STS5M-400 | 400.00 | 80 | STS5M-850 | 850.00 | 170 |
| STS5M-410 | 410.00 | 82 | STS5M-900 | 900.00 | 180 |
| STS5M-420 | 420.00 | 84 | STS5M-950 | 950.00 | 190 |
| STS5M-425 | 425.00 | 85 | STS5M-975 | 975.00 | 195 |
| STS5M-475 | 475.00 | 95 | STS5M-1000 | 1000.00 | 200 |
| STS5M-490 | 490.00 | 98 | STS5M-1050 | 1050.00 | 210 |
| STS5M-500 | 500.00 | 100 | STS5M-1125 | 1125.00 | 225 |
| STS5M-520 | 520.00 | 104 | STS5M-1270 | 1270.00 | 254 |
| STS5M-525 | 525.00 | 105 | STS5M-1350 | 1350.00 | 270 |
| STS5M-550 | 550.00 | 110 | STS5M-1420 | 1420.00 | 284 |
| STS5M-560 | 560.00 | 112 | STS5M-1595 | 1595.00 | 319 |
| STS5M-575 | 575.00 | 115 | STS5M-1800 | 1800.00 | 360 |
| STS5M-600 | 600.00 | 120 | STS5M-2000 | 2000.00 | 400 |
